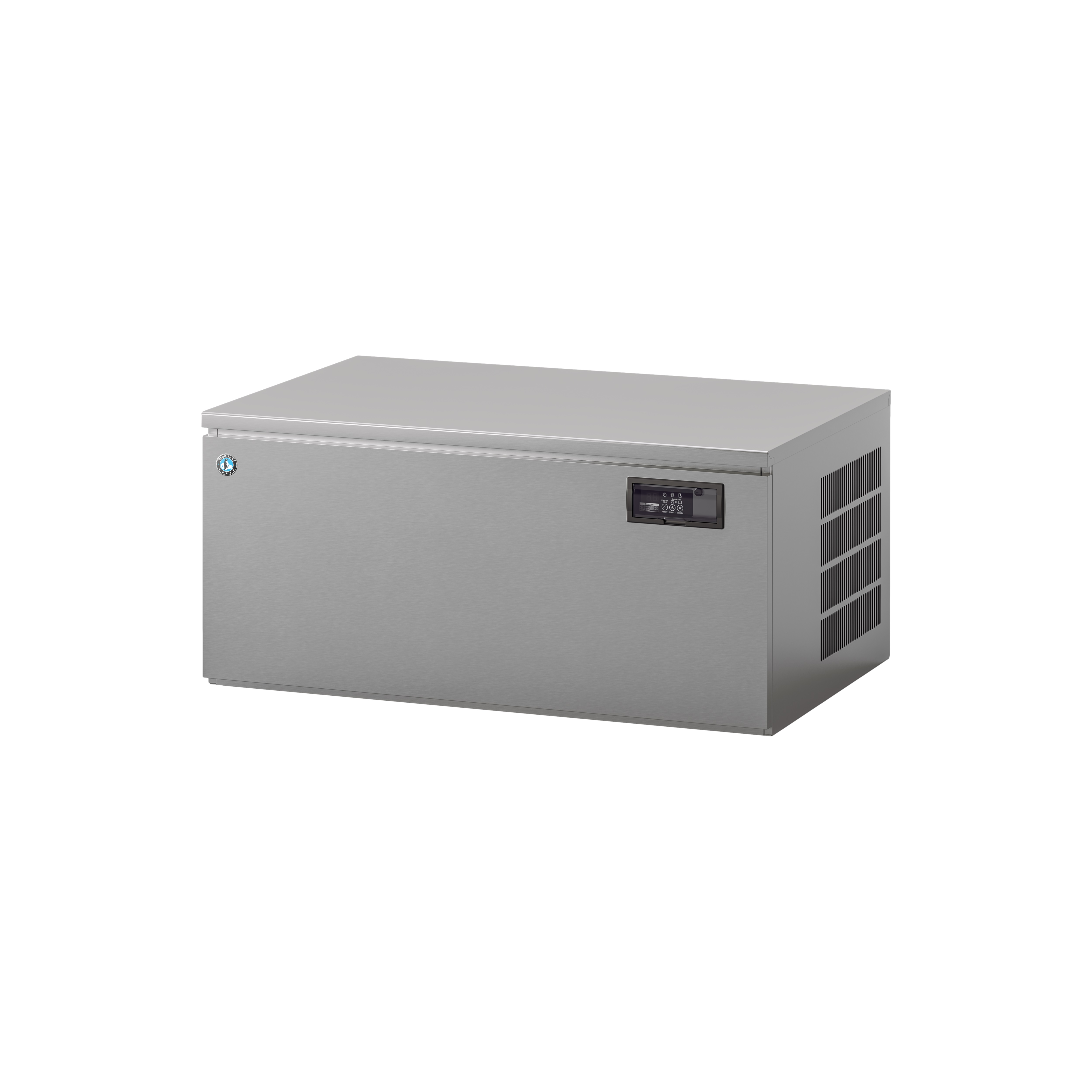

Hoshizaki IM-240DWPE

This Hoshizaki IM-240DWPE is the new standard IM CUBE variant of a Cuber, Modular & Stackable producing up to 209 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are 1084 x 700 x 500 mm.

SET YOURSELF UP FOR GROWTH AND SUCCESS.

The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.

Κατηγορία: Ετικέτα:

Περιγραφή

Product series IM CUBE
Model name IM-240DWPE
Item number M120-D008
Product title Cuber, Modular & Stackable
Brand Hoshizaki
Production Capacity (kg/24h) approx. (AT 10°C, WT 10°C) 209
Power Supply 1/220 – 240V/50Hz
Electric Consumption (kW) 0,76
Heat Rejection (AT 32°C, WT 21°C) (kW) 1,47
Ice type Large cubes, Standard
Ice cube size L (28 x 28 x 32 mm)
Refrigerant R290
CO2 equivalent (kg) 0,441
Cooling System Water Cooled
Product configuration Stackable
Net Weight (kg) 82
Gross Weight, Packed (kg) 97

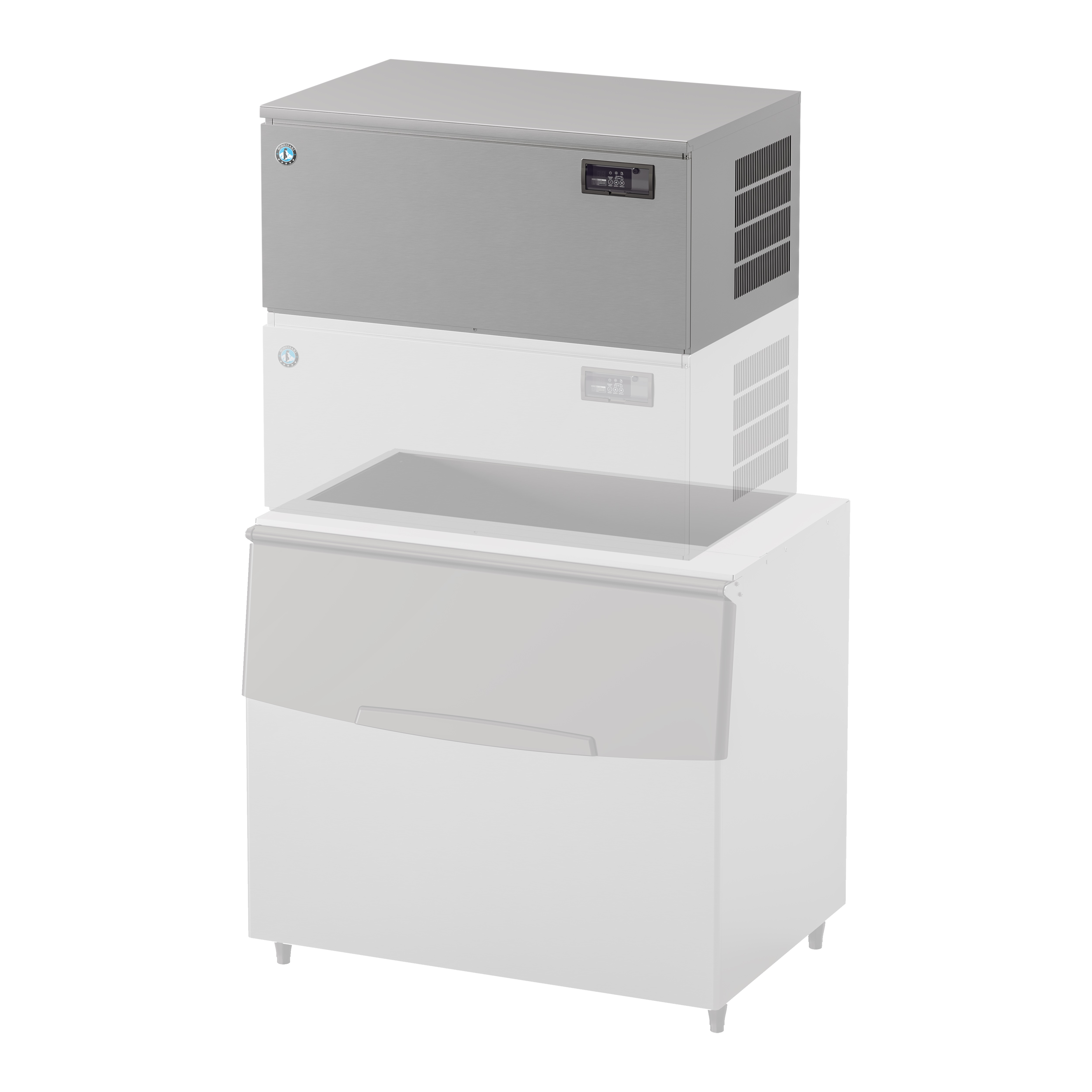

Corresponding bin(s) B-340SA
Condenser Water Consumption flow (m³/24h) approx. (AT 10°C, WT 10°C) 0,99
Condenser Water Consumption (m³/24h) approx. (AT 21°C, WT 15°C) 1,24
Condenser Water Consumption (m³/24h) approx. (AT 32°C, WT 21°C) 1,5

Spec Sheet
