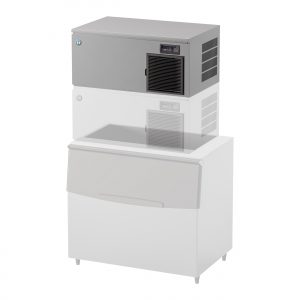

Hoshizaki IM-240WPE

This Hoshizaki IM-240WPE is the new standard IM CUBE variant of a Cuber, Self Contained producing up to 207 kg of the world-famous Hoshizaki ice cubes (Large cubes, Standard) per 24 hours. The dimensions of this model are mm without legs.

SET YOURSELF UP FOR GROWTH AND SUCCESS.

The IM CUBE models come with smart product improvements (compared to the previous IM range), such as automated cleaning (wash auto-restart), water circuit cleaning notification, condenser cleaning notification, scoop holder kit (optional), higher-grade stainless steel, magnetic DC Pump Motor with variable speed, and stand-by/wash buttons. Below is an overview of our new product features and their benefits. We also highlight our legacy features and their continued value.

Κατηγορία: Ετικέτα:

Περιγραφή

Product series IM CUBE
Model name IM-240WPE
Item number M118-D003
Product title Cuber, Self Contained
Brand Hoshizaki
Production Capacity (kg/24h) approx. (AT 10°C, WT 10°C) 207
Storage bin capacity (kg) 110
Power Supply 1/220 – 240V/50Hz
Electric Consumption (kW) 0,75
Heat Rejection (AT 32°C, WT 21°C) (kW) 1,54
Dimensions W x D x H (mm), legs excluded 704 x 665 x 1510
Dimensions of Legs (mm) for legs add 70-110mm
Ice type Large cubes, Standard
Ice cube size L (28 x 28 x 32 mm)
Refrigerant R290
CO2 equivalent (kg) 0,441
Cooling System Water Cooled
Product configuration Self Contained
Net Weight (kg) 108
Gross Weight, Packed (kg) 123
Condenser Water Consumption flow (m³/24h) approx. (AT 10°C, WT 10°C) 0,9
Condenser Water Consumption (m³/24h) approx. (AT 21°C, WT 15°C) 1,1
Condenser Water Consumption (m³/24h) approx. (AT 32°C, WT 21°C) 1,3

Spec Sheet
